Technische Daten

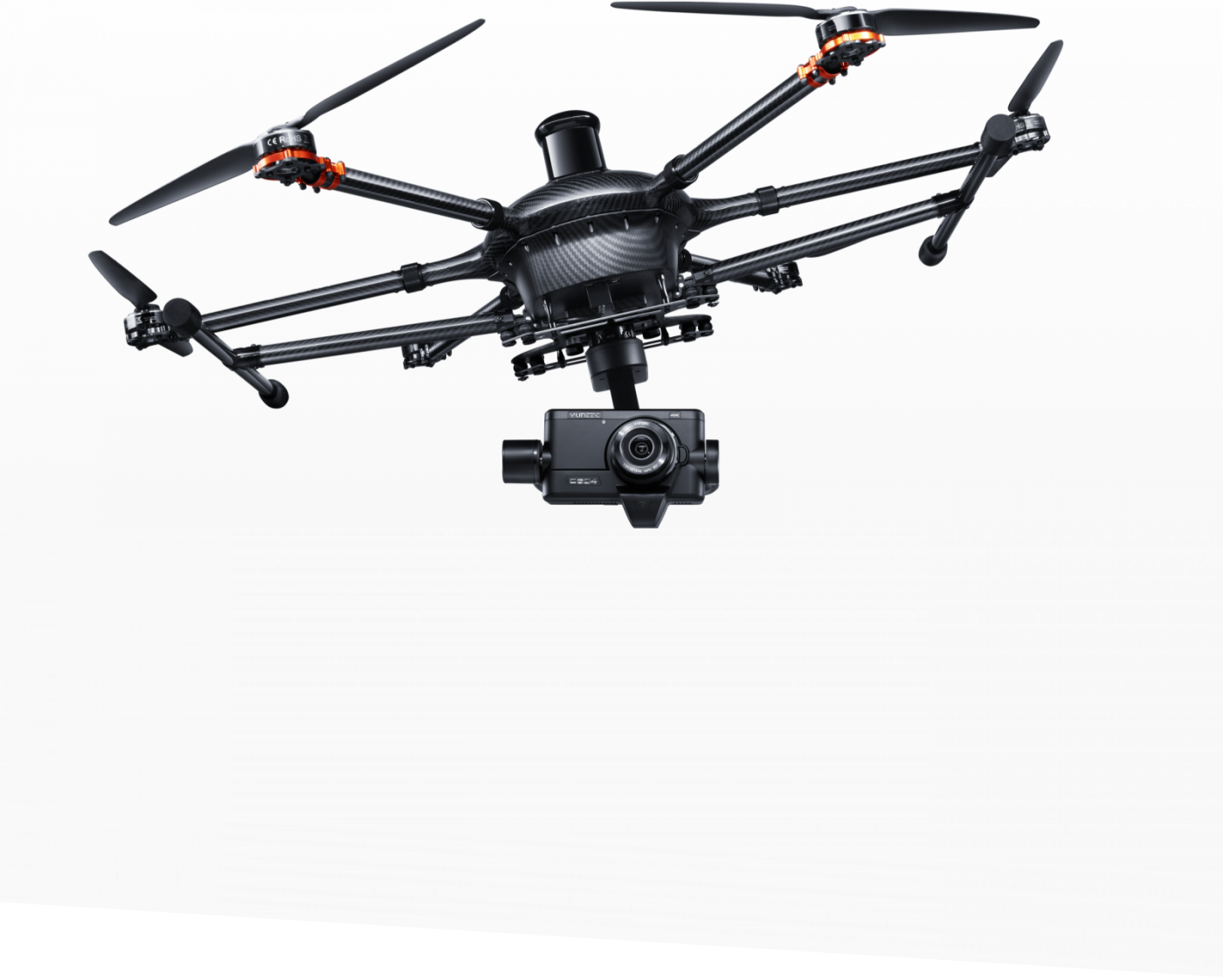

| Aircraft |
|
|
| Air Time |
24 min |
|
| Diagonal Length Without Rotor Blades |
36.2 in(920mm) |
|
| Propeller / Main Rotor Diameter |
17.3 in (440mm) |
|
| Take-off Weight with GB603, GH4 Camera and Battery |
176.0 oz (4990g) |
|
| Battery |
LiPo 6s 4000mAh 8C |
|
| Charger |
100W 2 x output AC-DC Balancing Charger |
|
| Transmitter |
24-channel 2.4GHz with 5.8GHz video downlink (included) |
|
| Flight Modes |
Smart, Angle and Home Modes |
|
| Maximum Flying Height (Absolute altitude） |
4000m (13123 ft) |
|
| Maximum Flying Height (Relative altitude) |
122m (400 ft) |
|
| Maximum Rotation Rate |
100°/s |
|
| Maximum Roll Angle |
35° |
|
| Maximum Horizontal Speed |
40km/h |
|
| Radio Control Frequency Band |
2.4GHz |
|
| Operating Temperature Range |
﹣10℃ to 50℃ |
|
| Gimbal |
|
| Dimension |
8.3x8.6x7.7in (210x219x196mm) for GH4; 8.3x8.8x7.7in(210x223x196mm)for sony α7 |
| Weight |
Without camera: 31.4 oz(890g)/With camera: 56.5 oz (1600g) |
| Axes |
3 |
| Maximum Control Range |
Pitch：between 30° and -90° Yaw：between 0°and 360° |
| Mechanical Range |
Pitch：between -120°and 75° Roll：between -40°and 40° Yaw：between 0° and 360° |
| Maximum Control Speed |
Pitch：30° /s Yaw: 30° /s min |
| Working Voltage |
12.0~25.2V |
| Working Current |
0.38~1.0A |
| Storage Temperature |
10°----30° |
| Working Temperature |
—5°---+45° |
| Compatible Device |
Panasonic LUMIX GH4 (Olympus M.ZUIKO DIGITAL ED 12mm f/2.0), SONY® ¬7 ILCE-7 (Sony SE_ 35F26Z FE2.8/35) |
| Ground Station |
|
| Operating System |
Android™ |
| Number of Channels |
24 |
| Control Transmission Distance/Range (Optimum Conditions) |
Max 2km |
| Robust Radio Control Modulation |
Yuneec Protocol |
| Video Link Frequency Band |
5.8GHz |
| Video Transmission Distance/Range (Optimum Conditions) |
FCC Compliance: Up to 700m(2296.59ft); CE Compliance: Up to 300m (984.25ft) |
| Flight Systems Telemetry Data On Screen Display (OSD) |
Yes |
| LED Backlit LCD Screen |
7” |
| Tactile (Vibrating) and Audible Feedback |
Yes |
| Built-In Li-ion Battery Voltage / Capacity |
8700mAh 1S Li-ion |
